31 July, 2008
On July 23rd, H D Moore, I)ruid, and the
Metasploit Project released
an
exploit for the
Dan Kaminsky DNS cache poisoning attack - the full
details of which will be released at the Blackhat Briefings. We know that source port
prediction for recursive queries is a key component to successfully poison a nameserver's
cache, and the Metasploit exploit code offers the ability to check a targeted nameserver
for predictable source ports. This check is implemented by sending a set of TXT
queries against the metasploit.com domain to a targeted server, and - if recursion is
enabled - the server will in turn send these queries (which are randomized and therefore
not cached) to a nameserver that is authoritative for the metasploit.com domain. The
information returned by the metasploit.com nameserver contains the source port the
targeted nameserver used to issue the queries. If the source port exhibits a high
degree of predictability (such as if the
query-source address * port named.conf
directive is used or if an external NAT device removes randomness in the source port
on its own), then it is much easier to spoof responses to queries against the target
from other nameservers and increase the chances that one of these spoofed responses will
be cached.
Here is an example of using the source port check feature in Metasploit. Some output
has been abbreviated, and the IP addresses 11.1.1.1 (hostname:
attacker)
and 22.2.2.2 (hostname:
target) are used only for illustration purposes:
[attacker]# ./msfconsole
msf > use auxiliary/spoof/dns/bailiwicked_host
msf auxiliary(bailiwicked_host) > set RHOST 22.2.2.2
RHOST => 22.2.2.2
msf auxiliary(bailiwicked_host) > check
[*] Using the Metasploit service to verify exploitability...
[*] >> ADDRESS: 22.2.2.2 PORT: 30001
[*] >> ADDRESS: 22.2.2.2 PORT: 30001
[*] >> ADDRESS: 22.2.2.2 PORT: 30001
[*] >> ADDRESS: 22.2.2.2 PORT: 30001
[*] >> ADDRESS: 22.2.2.2 PORT: 30001
[*] >> ADDRESS: 22.2.2.2 PORT: 30001
[*] FAIL: This server uses a static source port and is vulnerable to poisoning
So, the source port used by the targeted nameserver is always 30001 - convenient.
If we examine the traffic generated by Metasploit on the wire, the TXT queries
exhibit some nice structure. Note the
spoofprobe-check and
.red.metasploit.com strings in both the incoming queries
responses (actually, incoming queries contain the bytes
|03|red|0a|metasploit|03|com
in Snort syntax):
[attacker]# tcpdump -i eth0 -l -nn port 53
22:53:40.594082 IP 11.1.1.1.40866 > 22.2.2.2.53: 0+ TXT?
spoofprobe-check-1-10913572965.red.metasploit.com. (67)
22:53:40.730809 IP 22.2.2.2.53 > 11.1.1.1.40866: 0 1/1/0 TXT
"22.2.2.2:30001 IN IN::TXT spoofprobe-check-1-10913572965.red.metasploit.com" (182)
Further, in the query responses, the string
IN::TXT is also returned. So,
using this information, we can build iptables rules that leverage the string match
extension to inspect application layer data for these strings. We can then have
iptables take action such to log or drop packets that match.
If a nameserver is running locally on a Linux system, then the following rules
detect inbound requests from the attacker (see the usage of the iptables
--hex-string
argument to describe the non-printable bytes in the incoming DNS request), as well as
responses from the metasploit.com server to outbound recursive requests from the targeted
nameserver. Note that you might want to combine the LOG rules with the iptables
limit match in
order to reduce the number of log messages created during an actual attack. Still,
I find that having more data is usually good, and the number of source port
reconnaissance queries is much less than the number of spoofed responses when
a cache poisoning attempt is made anyway, so it shouldn't be too burdensome to leave
off the limit match.
[target]# iptables -I INPUT 1 -p udp --dport 53 -m string --string "spoofprobe-check" --algo bm -m string
--hex-string "|03|red|0a|metasploit|03|com" --algo bm -j LOG --log-prefix "METASPLOIT DNS RECON QUERY "
[target]# iptables -I INPUT 1 -p udp --dport 53 -m string --string "spoofprobe-check" --algo bm -m string
--hex-string "|03|red|0a|metasploit|03|com" --algo bm -j DROP
[target]# iptables -I INPUT 1 -p udp --sport 53 -m string --string "IN::TXT" --algo bm -m string --string
"spoofprobe-check" --algo bm -m string --string ".red.metasploit.com" --algo bm -j LOG
--log-prefix "METASPLOIT DNS RECON RESP "
[target]# iptables -I INPUT 1 -p udp --sport 53 -m string --string "IN::TXT" --algo bm -m string --string
"spoofprobe-check" --algo bm -m string --string ".red.metasploit.com" --algo bm -j DROP
Similar rules can be added to the FORWARD chain (along with specifying the
internal subnet or input interface so that directionality can be established)
for nameservers that are deployed on a separate system behind a Linux system
running iptables. The most important rules above are probably the first two,
since matching packets reveal the source IP of the attacker. However, this
is of limited use because the actual cache poisoning attack will involve
packets spoofed from other authoritative nameservers, and it is possible to
collect source port information
from other sources.
Still, having information about someone doing source port predictability
reconnaissance against one of your nameservers with Metasploit is worth knowing.
With the rules above in place, the 'check' step in Metasploit is unable to tell
that the targeted nameserver even responds to recursive queries at all, and back
on the firewall system several
METASPLOIT DNS RECON QUERY log messages
are written to syslog by iptables:
msf auxiliary(bailiwicked_host) > check
[*] Using the Metasploit service to verify exploitability...
[*] ERROR: This server is not replying to recursive requests
[target]# tail /var/log/messages
Aug 2 06:39:55 target kernel: [933142.545502] METASPLOIT DNS RECON QUERY IN=eth0 OUT=
MAC=00:13:46:3b:41:4c:00:12:46:c2:60:44:09:00 SRC=11.1.1.1 DST=22.2.2.2
LEN=96 TOS=0x00 PREC=0x00 TTL=63 ID=33573 DF PROTO=UDP SPT=40273 DPT=53 LEN=76
Aug 2 06:39:55 target kernel: [933142.637446] METASPLOIT DNS RECON QUERY IN=eth0 OUT=
MAC=00:13:46:3b:41:4c:00:12:46:c2:60:44:09:00 SRC=11.1.1.1 DST=22.2.2.2
LEN=96 TOS=0x00 PREC=0x00 TTL=63 ID=33574 DF PROTO=UDP SPT=40273 DPT=53 LEN=76
On another note, before using Metasploit to test your DNS infrastructure to see
if it is exploitable, it is important to know whether your local network allows
spoofed packets out. Many firewalls can be configured to drop spoofed packets
from internal systems, and even my little LinkSys router does this. Because
there is no mechanism in Metasploit currently (as far as I know) to detect
whether your local network filters spoofed packets (and building such a mechanism
would be tricky for various technical reasons), an incorrect assumption can
result in a cache poisoning attack that has no possibility of succeeding but
that also generates thousands of DNS queries at the same time.
Finally, for those unpatched nameservers running behind an iptables firewall, the
SNAT --random option can provide a work-around for predictable source ports.
Nevertheless, the emphasis should always be on patching vulnerable servers since
the source port problem is only one aspect of the vulnerability in DNS.
In the latest issue of Hakin9 Magazine,
I had an article published entitled Advanced SPA with fwknop. It
was the goal of this article to introduce the port forwarding capabilities of fwknop
that make it possible to reach internal services with automatically generated NAT

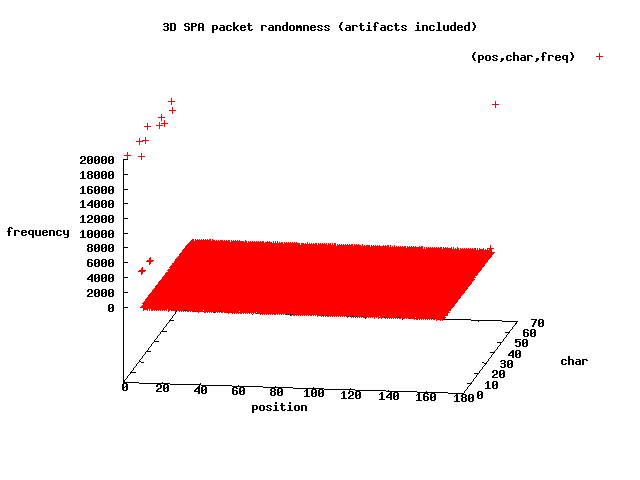

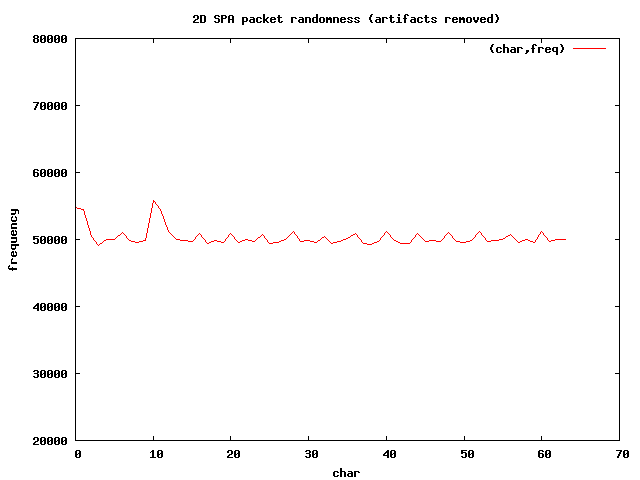

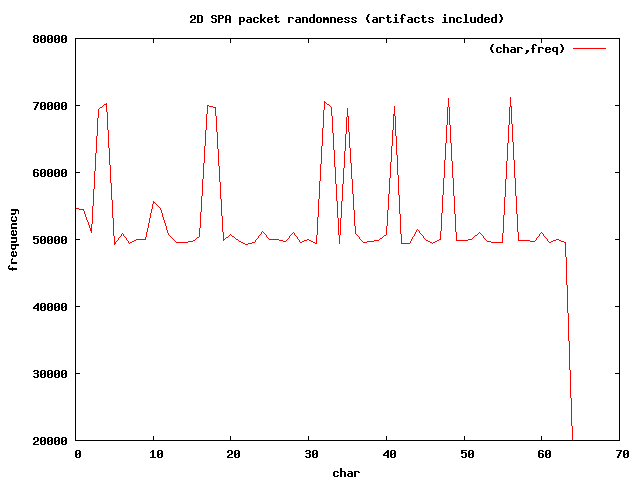

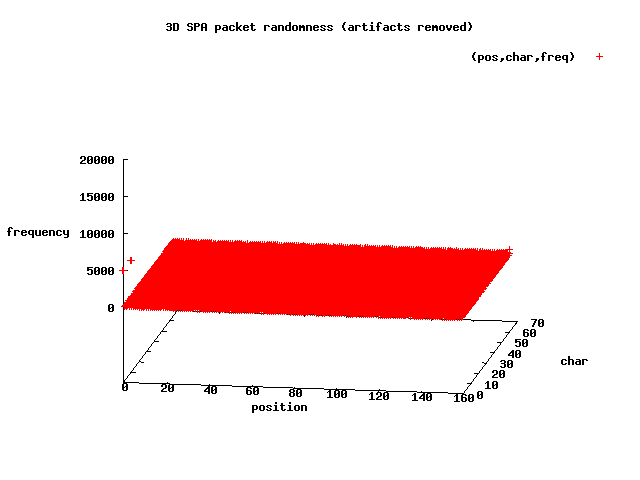

rules, and also to show how fwknop SPA packets (prior to the 1.9.6 release) could be
detected with some well-crafted Snort rules that look for certain encryption and
encoding artifacts. Also, with the addition of
source IP addresses to SPA digest tracking,
it is possible to get a sense of routing paths that might at one time have had
sniffers watching for SPA packets if a replay attack against the same fwknopd
instance is detected at some later time.
In the continual arms race that is computer security today,
having a good understanding of network communications and how to customize an
IDS rule set to an emerging protocol is an important skill. Finally, SPA
offers a compelling addition to the tools available for effective server
defense; I personally sleep more soundly knowing that arbitrary IP addresses
around the Internet cannot see that I have an SSH daemon running, and yet I can
access it from wherever I like.
